Proper ventilation a challenge for your decking project? Iron Woods deck tile and pedestal system was built for this moment.





the deck system


Unique features no other system has



Whether you’re dealing with poor underdeck ventilation, sloped surfaces, ineffective draining or any other building challenge, the Iron Woods Deck Tile and Pedestal System can help. Developed to provide a stable wood deck surface for any deck construction with poor good ventilation, Iron Woods Decking System offers a unique and cost effective solution.






FEATURES & BENEFITS

Why Iron Woods® Deck Tiles?


Cost-effective alternative to traditional decking

Looking for a more budget-friendly decking solution? The Iron Woods System provides a simple, high-value alternative.

Curb-to-curb appeal

Iron Woods Deck Tiles and Pedestal Systems provide a unique solution for the conversion of city streets (for pedestrian use only), Urban Boardwalks, StreetScapes, and Street Decks. The systems offer a temporary or permanent solution for a variety of functional design needs.

Smooth decking surface

Iron Woods® Ipe Deck Tiles are made with a smooth deck board surface to maximize shoe-to-surface area contact. Additionally, smooth decking is easier to clean and reduces fungi growth, which can further increase slip resistance.

Cost-effective alternative to traditional decking

Looking for a more budget-friendly decking solution? The Iron Woods System provides a simple, high-value alternative.

Curb-to-curb appeal

Iron Woods Deck Tiles and Pedestal Systems provide a unique solution for the conversion of city streets (for pedestrian use only), Urban Boardwalks, StreetScapes, and Street Decks. The systems offer a temporary or permanent solution for a variety of functional design needs.

Smooth decking surface

Iron Woods® Ipe Deck Tiles are made with a smooth deck board surface to maximize shoe-to-surface area contact. Additionally, smooth decking is easier to clean and reduces fungi growth, which can further increase slip resistance.


FEATURES & BENEFITS

Why Iron Woods® Deck Tiles?


Cost-effective alternative to traditional decking

Looking for a more budget-friendly decking solution? The Iron Woods System provides a simple, high-value alternative.

Curb-to-curb appeal

Iron Woods Deck Tiles and Pedestal Systems provide a unique solution for the conversion of city streets (for pedestrian use only), Urban Boardwalks, StreetScapes, and Street Decks. The systems offer a temporary or permanent solution for a variety of functional design needs.

Smooth decking surface

Iron Woods® Ipe Deck Tiles are made with a smooth deck board surface to maximize shoe-to-surface area contact. Additionally, smooth decking is easier to clean and reduces fungi growth, which can further increase slip resistance.

Cost-effective alternative to traditional decking

Looking for a more budget-friendly decking solution? The Iron Woods System provides a simple, high-value alternative.

Curb-to-curb appeal

Iron Woods Deck Tiles and Pedestal Systems provide a unique solution for the conversion of city streets (for pedestrian use only), Urban Boardwalks, StreetScapes, and Street Decks. The systems offer a temporary or permanent solution for a variety of functional design needs.

Smooth decking surface

Iron Woods® Ipe Deck Tiles are made with a smooth deck board surface to maximize shoe-to-surface area contact. Additionally, smooth decking is easier to clean and reduces fungi growth, which can further increase slip resistance.


Need to Know

Deck Tile Specifications


Features


  • Cost-effective solution for both rooftop and conventional decks
  • Easy installation with pressure fit pin connection technology
  • Class 1 durability rating ( 25+ years in-ground contact )
  • ASTM E84 Class A fire rating and Cal Fire Wildland Urban Interface approval
  • Engineered for minimum 100 psf live load
  • Withstands wind uplift forces to 175mph as rated for central Dade County Florida
  • Smooth deck surface to maximize shoe surface area contact/minimize cleaning

Coefficient of Friction RatingsStandard Tile Dimensions
Coefficient of Friction Ratings
Coefficient of friction ratings
  • Static: Wet – .615FP
  • Dynamic:Wet – .43FP

Iron Woods® Ipe Deck Tiles are offered with a smooth deck board surface only. Grooved decking surfaces are not recommended. Why? Grooved surfaces reduce surface area contact with a shoe and are more difficult to clean supporting the collection of food and dirt which encourages fungi growth further reducing slip resistance.

*While Iron Woods Deck Tiles meet minimum International Building Code Compliance Standards, this is not a warranty of safety.

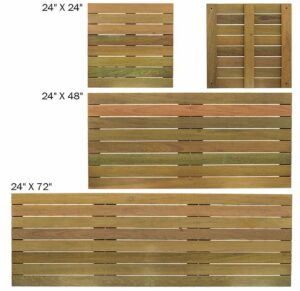

Standard Tile Dimensions
Standard Tile Dimensions

StockUnfinished

  • IPE 24”x24”
  • IPE 24”x48’’
  • IPE 24’’x72”

FSC ITAUBA

  • 24”X24”


Need to Know

Deck Tile Specifications


FeaturesCoefficient of Friction RatingsStandard Tile Dimensions
Features
  • Cost-effective solution for both rooftop and conventional decks
  • Easy installation with pressure fit pin connection technology
  • Class 1 durability rating ( 25+ years in-ground contact )
  • ASTM E84 Class A fire rating and Cal Fire Wildland Urban Interface approval
  • Engineered for minimum 100 psf live load
  • Withstands wind uplift forces to 175mph as rated for central Dade County Florida
  • Smooth deck surface to maximize shoe surface area contact/minimize cleaning
Coefficient of Friction Ratings
  • Static: Wet – .615FP
  • Dynamic:Wet – .43FP

Iron Woods® Ipe Deck Tiles are offered with a smooth deck board surface only. Grooved decking surfaces are not recommended. Why? Grooved surfaces reduce surface area contact with a shoe and are more difficult to clean supporting the collection of food and dirt which encourages fungi growth further reducing slip resistance.

*While Iron Woods Deck Tiles meet minimum International Building Code Compliance Standards, this is not a warranty of safety.

Standard Tile Dimensions

StockUnfinished

  • IPE 24”x24”
  • IPE 24”x48’’
  • IPE 24’’x72”

FSC ITAUBA

  • 24”X24”

Your next project begins with Iron Woods. Let’s get started.

Tell us what you’re looking for.


Your next project begins
with Iron Woods.




High Praise


What Installers Say



The Iron Woods Adjustable Self-Leveling Pedestal saves us 30 to 40% in installation labor because of the UNIQUE FEATURES that no other pedestal has!



“Very easy to install.  No need to rent a crane for our roof deck project as everything we needed fit into the elevator!”



Which is right for you?

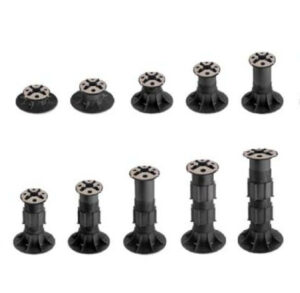

Pedestal Options


Iron Woods offers several pedestal options based on surface and elevation requirements. Iron Woods pedestals can be utilized for projects that require roof-to-deck surface tile elevation heights from 1-3/4” up to 36” and loads up to 2000lbs per pedestal.


Features


  • Increases performance and stability
  • Ease of installation
  • Pressure fit connection technology
  • Post installation elevation adjustment
  • Self-leveling technologies
  • Individual loading capacity exceeds 2200 lbs
  • Use with any surface
  • 100% post-industrial recycled material
  • Resistant to temperatures -22°F to +248° (-30°C to +120°C)
  • Resistant to acid and UV stable
  • ISO 9001/2008 and SA8000 certified
  • LEED compliant

EPDM-80 PedestalStar Pedestal System with Eterno™ TechnologySelf-Leveling Screw Jack Pedestal SystemConventional Deck Head

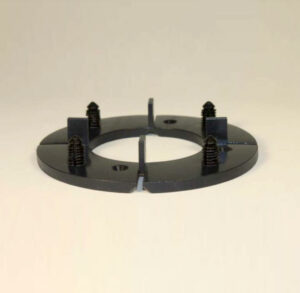

EPDM-80 Pedestal
EPDM-80 Pedestal

For times when you need to follow the natural contour of the roof, choose EPDM Rubber Pedestal. The 1/4” fixed-height pedestal incorporates spacer tabs and pressure fit connector technology.

  • resistant to environmental deterioration
  • safe for direct contact with the roof surface.
  • sound-deadening qualities
  • creates a soft feel for walking
  • Easily separated into halves/quarters to make perimeter/corner placement a breeze

Not stackable. For low-elevation support requirements only.

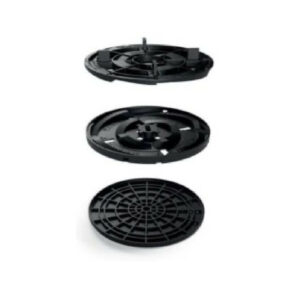

Star Pedestal System with Eterno™ Technology
Star Pedestal System with Eterno™ Technology

When your project requires pedestals under 1-1/4”, choose Iron Woods® New Star Pedestal System. The Star Pedestal System incorporates pressure fit connection technology but not self–leveling technology.

  • Unique design and key slot provides post-installation elevation micro adjustment from 3/8” to 9/16”
  • Any required pedestal height can be met from 3/8” to 1-1/4” when combined with the 3/16” stackable Star B Base pedestals

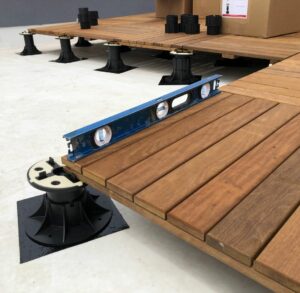

Self-Leveling Screw Jack Pedestal System
Self-Leveling Screw Jack Pedestal System with Eterno™ Technology

Looking for a simple solution? Iron Woods® Self Leveling Pedestals with built-in slope compensation is right for you. Combining supporting base, extension, screw and head options, the system generates pedestal heights from 1.25” to 21.75” and slopes from 5/32’’ to ½’’ (0% to 5%) per foot of slope. Pedestals are placed on a 24” square grid.

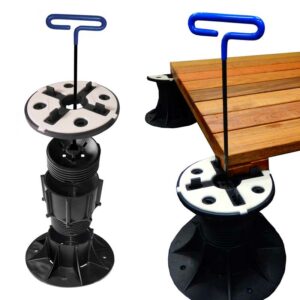

  • Adjustment key allows for final micro adjustments after installation.
  • Screw block system indicates when units safely reach maximum height adjustment.
  • Pre-cut to facilitate perimeter and corner placement
  • Shims compensate for any minor variations in deck tile thickness. Shims are provided in 1/8” or 1/16” thicknesses.
  • Integrated anti-noise, bi-component soft rubber pad and pressure-fit connection technology
  • Mechanical connection between tiles and head seamlessly integrates all components of the system.

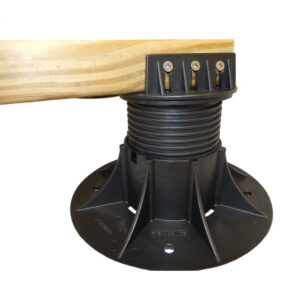

Conventional Deck Head
Conventional Deck Head

Elevations™ pedestal systems support conventional deck construction as well as deck tiles. The unique conventional deck head is designed to allow for the attachment of stringers. A simple application of Iron Woods 2×4 Ipe stringers (laid flat) and one of Iron Woods 5/4×4 Ipe decking options, provides a traditional deck appearance and increases the deck live load rating to 275 psf. As a ‘Best Practice’ Iron Woods recommends the use of 5/4×4 deck profiles (S4S E4E, Traditional Slotted) where ventilation is limited or poor.


Which is right for you?

Pedestal Options


OverviewFeaturesEPDM-80 PedestalStar Pedestal System with Eterno™ TechnologySelf-Leveling Screw Jack Pedestal System with Eterno™ TechnologyConventional Deck Head
Overview

Iron Woods offers several pedestal options based on surface and elevation requirements. Iron Woods pedestals can be utilized for projects that require roof-to-deck surface tile elevation heights from 1-3/4” up to 36” and loads up to 2000lbs per pedestal.

Features
  • Increases performance and stability
  • Ease of installation
  • Pressure fit connection technology
  • Post installation elevation adjustment
  • Self-leveling technologies
  • Individual loading capacity exceeds 2200 lbs
  • Use with any surface
  • 100% post-industrial recycled material
  • Resistant to temperatures -22°F to +248° (-30°C to +120°C)
  • Resistant to acid and UV stable
  • ISO 9001/2008 and SA8000 certified
  • LEED compliant
EPDM-80 Pedestal

For times when you need to follow the natural contour of the roof, choose EPDM Rubber Pedestal. The 1/4” fixed-height pedestal incorporates spacer tabs and pressure fit connector technology.

  • resistant to environmental deterioration
  • safe for direct contact with the roof surface.
  • sound-deadening qualities
  • creates a soft feel for walking
  • Easily separated into halves/quarters to make perimeter/corner placement a breeze

Not stackable. For low-elevation support requirements only.

Star Pedestal System with Eterno™ Technology

When your project requires pedestals under 1-1/4”, choose Iron Woods® New Star Pedestal System. The Star Pedestal System incorporates pressure fit connection technology but not self–leveling technology.

  • Unique design and key slot provides post-installation elevation micro adjustment from 3/8” to 9/16”
  • Any required pedestal height can be met from 3/8” to 1-1/4” when combined with the 3/16” stackable Star B Base pedestals
Self-Leveling Screw Jack Pedestal System with Eterno™ Technology

Looking for a simple solution? Iron Woods® Self Leveling Pedestals with built-in slope compensation is right for you. Combining supporting base, extension, screw and head options, the system generates pedestal heights from 1.25” to 21.75” and slopes from 5/32’’ to ½’’ (0% to 5%) per foot of slope. Pedestals are placed on a 24” square grid.

  • Adjustment key allows for final micro adjustments after installation.
  • Screw block system indicates when units safely reach maximum height adjustment.
  • Pre-cut to facilitate perimeter and corner placement
  • Shims compensate for any minor variations in deck tile thickness. Shims are provided in 1/8” or 1/16” thicknesses.
  • Integrated anti-noise, bi-component soft rubber pad and pressure-fit connection technology
  • Mechanical connection between tiles and head seamlessly integrates all components of the system.
Conventional Deck Head

Elevations™ pedestal systems support conventional deck construction as well as deck tiles. The unique conventional deck head is designed to allow for the attachment of stringers. A simple application of Iron Woods 2×4 Ipe stringers (laid flat) and one of Iron Woods 5/4×4 Ipe decking options, provides a traditional deck appearance and increases the deck live load rating to 275 psf. As a ‘Best Practice’ Iron Woods recommends the use of 5/4×4 deck profiles (S4S E4E, Traditional Slotted) where ventilation is limited or poor.




Superior hardwood with sourcing certainty you can build on.





Green by Nature


Environmental Accountability

If sourcing certainty is important to you, choose Iron Woods. Our complete supply chain traceability system goes above and beyond forest certification.
